Product Description

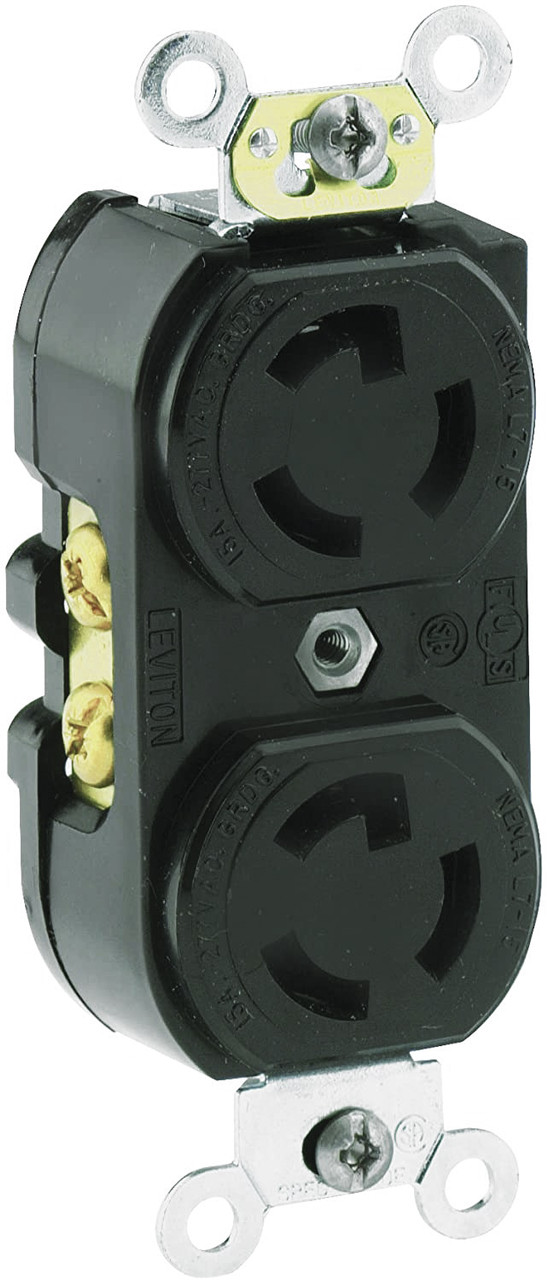

Leviton 4750 - 15 Amp, 277 Volt 2 Pole Duplex Locking Receptacle
- Ground: Grounding
- Amperage: 15 Amp
- Voltage: 277 Volt
- Dielectric Voltage: Withstands 2000V per UL498
- Current Limiting: Full Rated Current
- Temperature Rise: Max 30C after 250 cyc OL at 200 pct rated current
- NEMA: L7-15R
- Pole: 2
- Wire: 3
- Termination: Back
- Terminal ID: Brass-Hot, Green-Ground, White-Neutral
- Terminal Accom.: 18-10 AWG
- Product ID: Ratings and NEMA I.D. permanently marked on device
- Face Material: Nylon
- Body Material: Nylon
- Strap Material: Steel
- Line Contacts: Brass .031 Thick
- Terminal Screws: Brass 10-32
- Grounding Screw: Brass 8-32
- Yoke: Zinc-Plated Steel
- Flammability: Rated V-2 per UL94
- AC Horsepower Rating: At Rated Voltage 2 HP
- Color: White
- Standards and Certifications: UL/CSA
- NEMA: WD-6
- ANSI: C-73
- UL498: File E13399
- UL Fed Spec WC-596: File E13399
- CSA C22.2 No. 42: File LR-406
- NOM: 057
- Warranty: Lifetime
- Industrial Grade
